980nm+1470nm Diode Laser Machine for Lipolysis, Vascular & Nail Fungus

Dual-Wavelength Technology Principle (980nm + 1470nm)

The AS-VL+ system operates based on dual chromophore-targeted laser technology, combining the advantages of 980nm and 1470nm wavelengths. Both wavelengths can be controlled independently, allowing practitioners to adjust output power, pulse mode, and treatment logic according to different indications.

980nm Diode Laser

• Strong absorption by hemoglobin

• Deep tissue penetration

• Suitable for vascular lesions, nail fungus, pain therapy, skin rejuvenation, eczema, and herpes care

1470nm Diode Laser

• High absorption by water and adipose tissue

• Precise thermal effect

• Ideal for laser lipolysis and fat dissolution

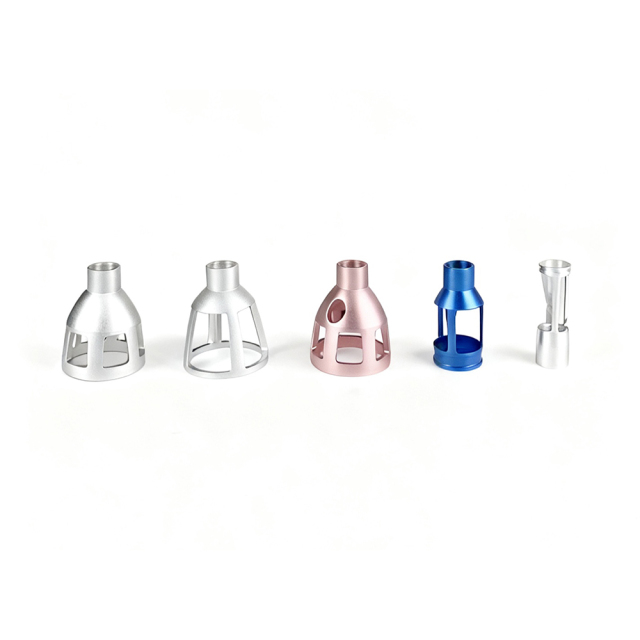

Handpieces & Treatment Functions

AS-VL+ supports multiple specialized handpieces designed for different clinical applications, offering flexibility and precision in daily practice.

● Vascular Treatment Head

Designed for superficial vascular lesions such as spider veins, telangiectasia, red veins, and rosacea.
The 980nm wavelength targets hemoglobin to induce precise photocoagulation and vessel closure.

● Onychomycosis Treatment Head

Delivers focused 980nm laser energy through the nail plate to destroy fungal structures while protecting surrounding healthy tissue.

● Eczema & Herpes Treatment Head

Provides low-energy laser therapy to reduce inflammation, inhibit bacterial or viral activity, and accelerate skin healing.

● Pain Relief Therapy Head

Optimized for musculoskeletal pain management and physical therapy.
The deep-penetrating 980nm laser improves microcirculation, reduces inflammation, and promotes tissue repair.
Suitable for both human treatment and pet rehabilitation.

● Skin Rejuvenation Treatment Head

Uses controlled low-energy 980nm and 1470nm laser irradiation to stimulate fibroblast activity and collagen remodeling, improving skin elasticity and texture.

● Multifunctional Therapy Head

A versatile handpiece supporting multiple treatment protocols, ideal for clinics offering combined aesthetic and therapeutic services.

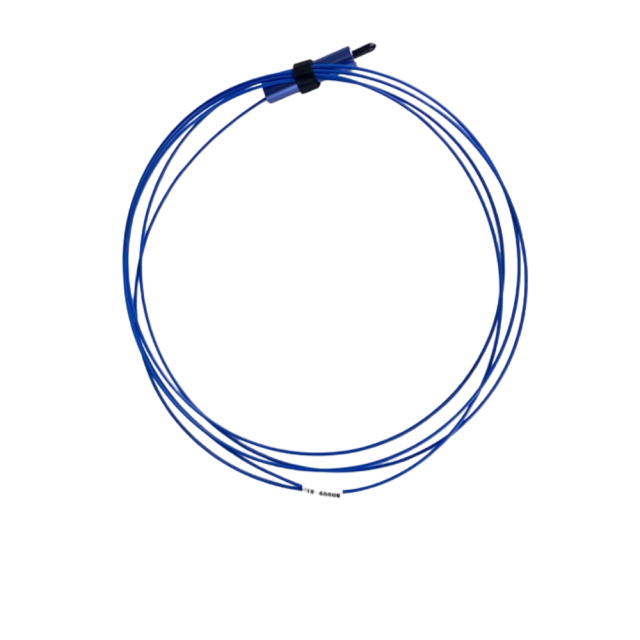

● Lipolysis Fiber

Delivers 1470nm laser energy directly into adipose tissue for effective fat dissolution and body contouring.

● Fat Dissolving Handle with 5 Needles

Designed for precise, multi-point laser lipolysis treatments, enhancing efficiency and contouring results.

Applications

• Laser lipolysis and fat reduction
• Superficial vascular lesions (spider veins, telangiectasia, rosacea)
• Onychomycosis (nail fungus) treatment
• Pain relief and physical therapy
• Skin rejuvenation and collagen remodeling
• Eczema improvement
• Herpes (HSV lesion) relief

Features & Advantages

• Independent 980nm and 1470nm wavelength output
• Dual-channel high-quality semiconductor laser drivers
• TEC temperature control system for stable performance
• 8-inch touchscreen with 6-language interface
• Pre-configured clinical modes and customizable settings
• Full rated power output with high pulse accuracy
• Inter-pulse stability ≤ 1%, pulse overshoot ≤ 3%
• Fiber optic connection detection and emergency stop system
• Real-time temperature monitoring and automatic laser cut-off
• Adjustable red aiming beam with 10 brightness levels
• Designed for long-term clinical use (MTBF ≥ 5000h)
