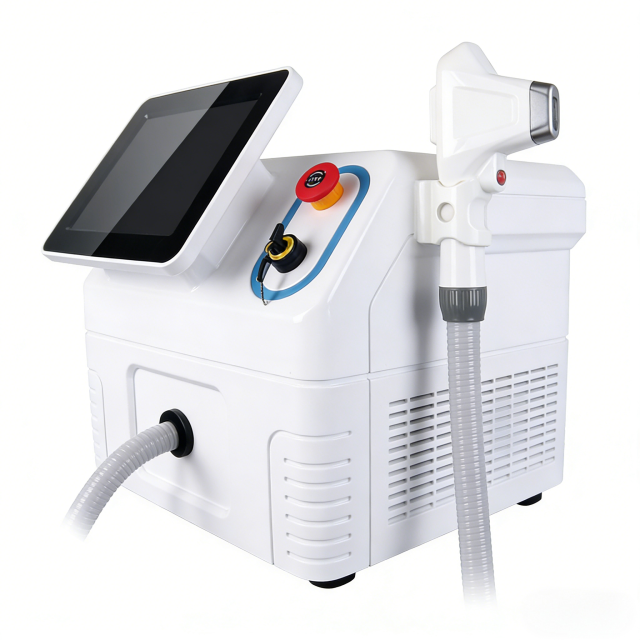

Fiber Coupled Laser Hair Removal Machine with 755/808/1064nm Triple Wavelength

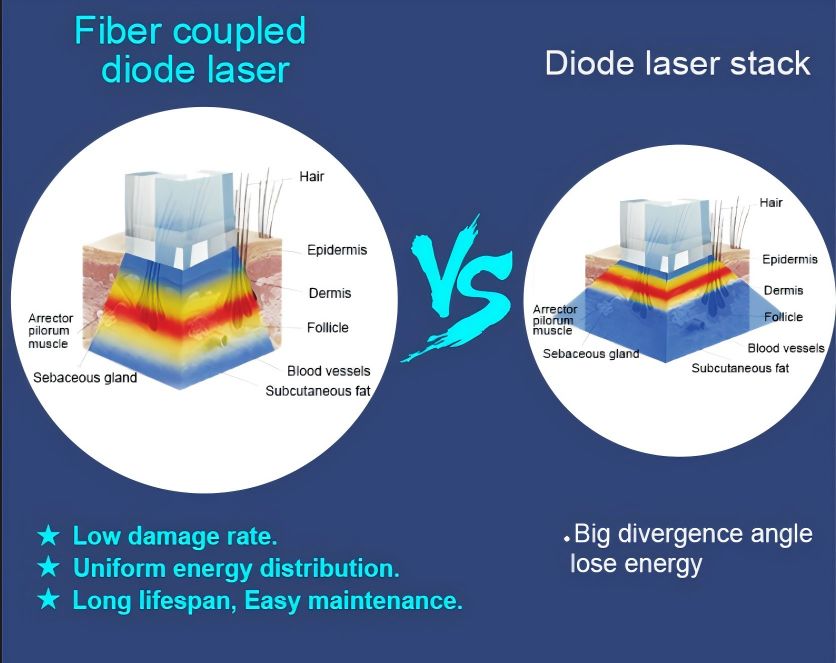

What is Fiber Coupled Laser Technology?

Fiber Coupled Laser technology uses a micro lens array to couple light generated by multiple diode laser sources into a single-core multimode optical fiber.
The laser energy is then transmitted from the mainframe to the treatment handpiece with minimal loss.

This design provides:

• Uniform energy distribution
• Higher optical efficiency (>90% energy conductivity)
• Lower failure rate
• Longer laser lifespan
• Easier maintenance compared to traditional diode laser systems

Because the laser module is installed inside the main machine, the handpiece becomes significantly lighter, more durable, and completely free of consumable laser parts.

The triple wavelengths work synergistically:

• 755nm: High melanin absorption, ideal for fine and light-colored hair
• 808nm: Gold standard for deep follicle penetration
• 1064nm: Safe and effective for dark skin types (IV–VI)

Cartridge & Modes

The AS-800S+ system is equipped with a fiber laser output handpiece rather than traditional diode laser bars, with a multi-language interface, it supports for global clinical use.

Handpiece Configuration

• Standard fiber laser handpiece with integrated shot counter
• Optional patented small treatment tip for small and delicate areas
• Conical sapphire crystal output for uniform and vertical laser emission

Treatment Modes

• Adjustable pulse width (5–600ms)
• Adjustable energy density (1–120 J/cm²)
• Adjustable frequency (1–10Hz)
• Preset clinical parameters for different skin and hair types

Applications

• Permanent hair reduction
• Full body hair removal
• Facial hair removal
• Bikini line & intimate areas
• Underarms
• Arms, legs, chest, back
• Fine hair and coarse hair
• All skin types I–VI, including dark skin

Features & Advantages

Triple Wavelength Technology: Combined 755nm / 808nm / 1064nm for all hair types and skin tones.

1200W High Power & Fast Treatment: Lightning-fast treatment speed, saves operator time and improves clinic efficiency.

Fiber Laser Installed Inside Mainframe:

• No handpiece laser burning risk
• No consumable laser parts
• Significantly longer system lifespan
• Higher return on investment

Lightweight Handpiece: Only 0.65kg, comfortable for long working hours, reduced operator fatigue

Advanced Cooling System:

• TEC + Sapphire contact cooling
• Cooling temperature ≤5℃
• Powerful ice treatment for pain-free experience

• 90% laser energy conductivity
• -20℃ low-temperature sealing technology
• Stable output and enhanced safety

Long Lifespan: Handpiece lifespan >50 million shots, designed for long-term high-frequency clinical use


Technical Parameters

Accessories

• Fiber laser handpiece ×1
• Power cord ×1
• Doctor protective glasses ×1
• Patient goggles ×1
• User manual ×1
• Fuse ×2
• Funnel ×1
• Key ×2
• Drainage connector ×1
