The Ultrasonic Rib Scalpel is a state-of-the-art instrument engineered for high-precision, minimally invasive bone sculpting in aesthetic rib contouring and reconstructive thoracic surgery. Built to meet rigorous clinical standards, this advanced ultrasonic bone surgery system delivers exact bone cutting with minimal trauma, reduced bleeding, and accelerated patient recovery. Globally trusted in leading surgical programs like RIBXCAR—a renowned initiative for safe, standardized rib reshaping—our scalpel ensures consistent, reliable outcomes while safeguarding surrounding tissues.


Product Overview

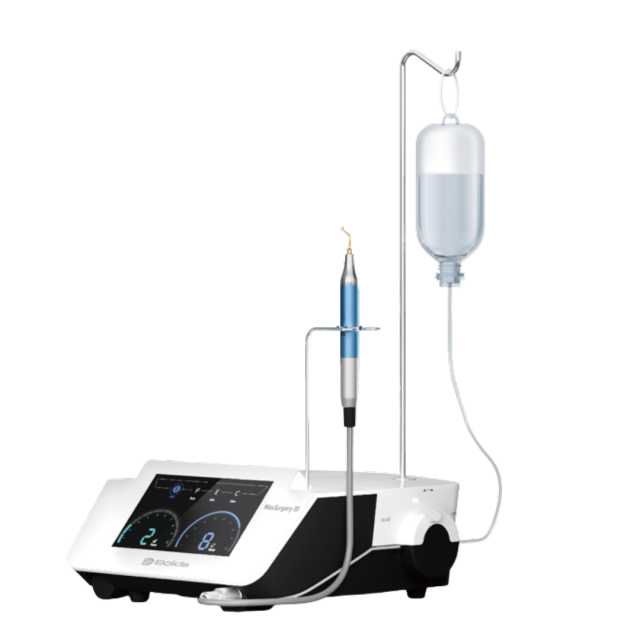

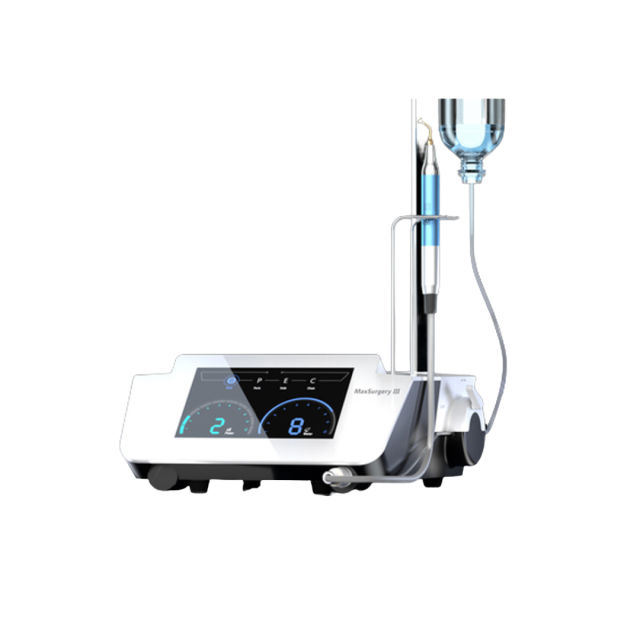

The Ultrasonic Bone Surgery Device is an advanced ultrasonic system designed for precise and minimally invasive osteotomy in thoracic, orthopedic, maxillofacial, and cosmetic surgery. By converting high-frequency electrical energy into ultrasonic vibrations, it enables micron-level cutting accuracy—effectively dissecting bone while protecting surrounding soft tissue. Its ergonomic handpiece and intelligent cooling ensure comfort, safety, and efficiency in various surgical procedures.

Working Principle

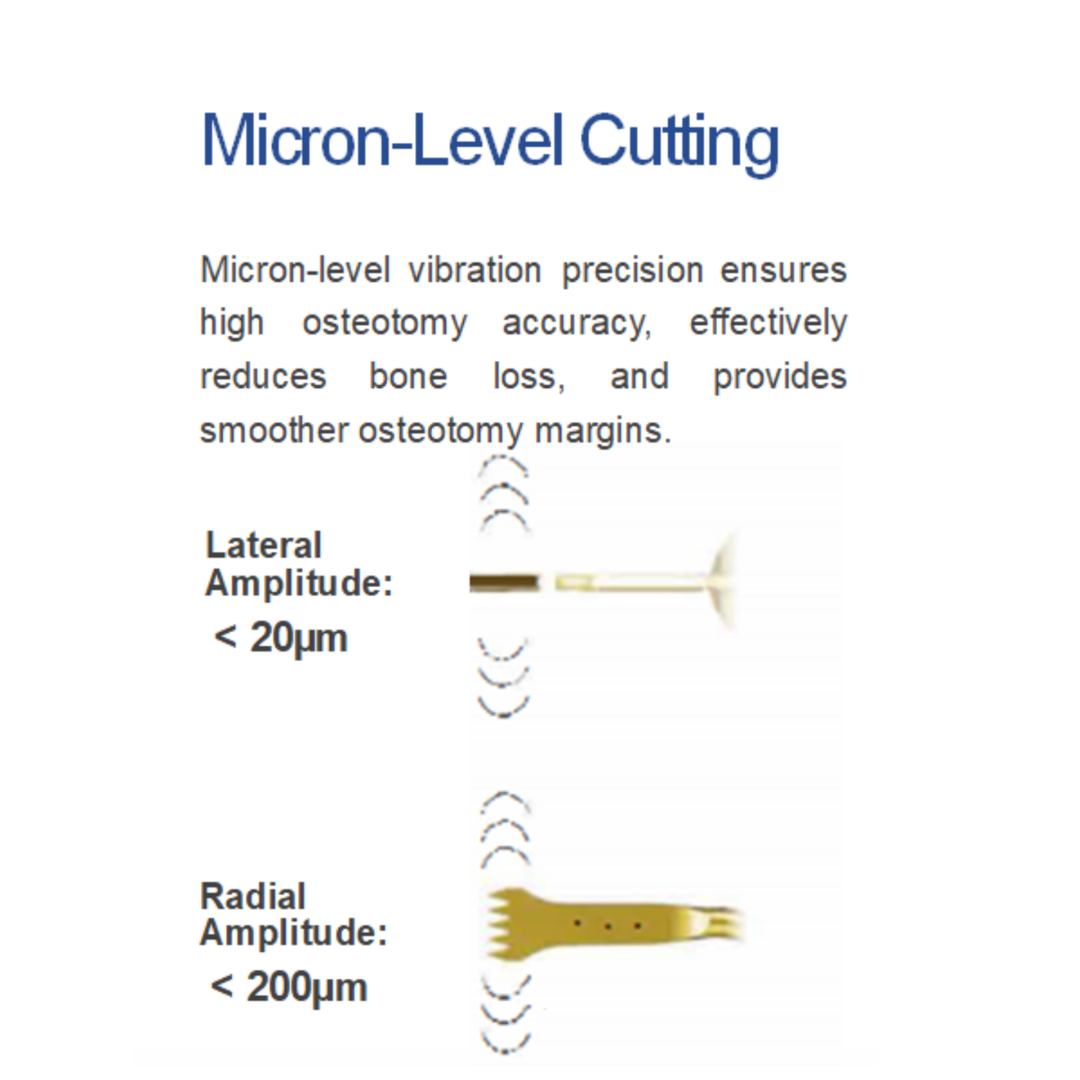

Using piezoelectric technology, the system generates ultrasonic vibrations at 26 ± 3 kHz.

When the tip contacts bone, these micro-vibrations selectively cut mineralized tissue without harming adjacent soft tissue.

A peristaltic cooling system continuously sprays a fine water mist to disperse heat and prevent burns, ensuring stable performance and clean cutting. This combination of selective cutting and continuous cooling allows for precise operation, minimal bleeding, and faster recovery.

Features

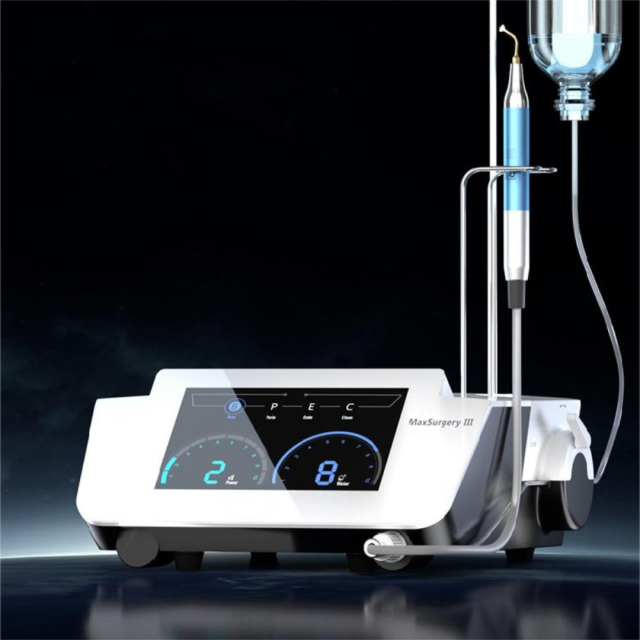

HD Touchscreen Interface: 7-inch display with intuitive, easy-clean design for fast parameter adjustment.

Intelligent Cooling System: Flow rate 30–125 ml/min, 8% higher than comparable models. Fine mist cooling prevents thermal damage.

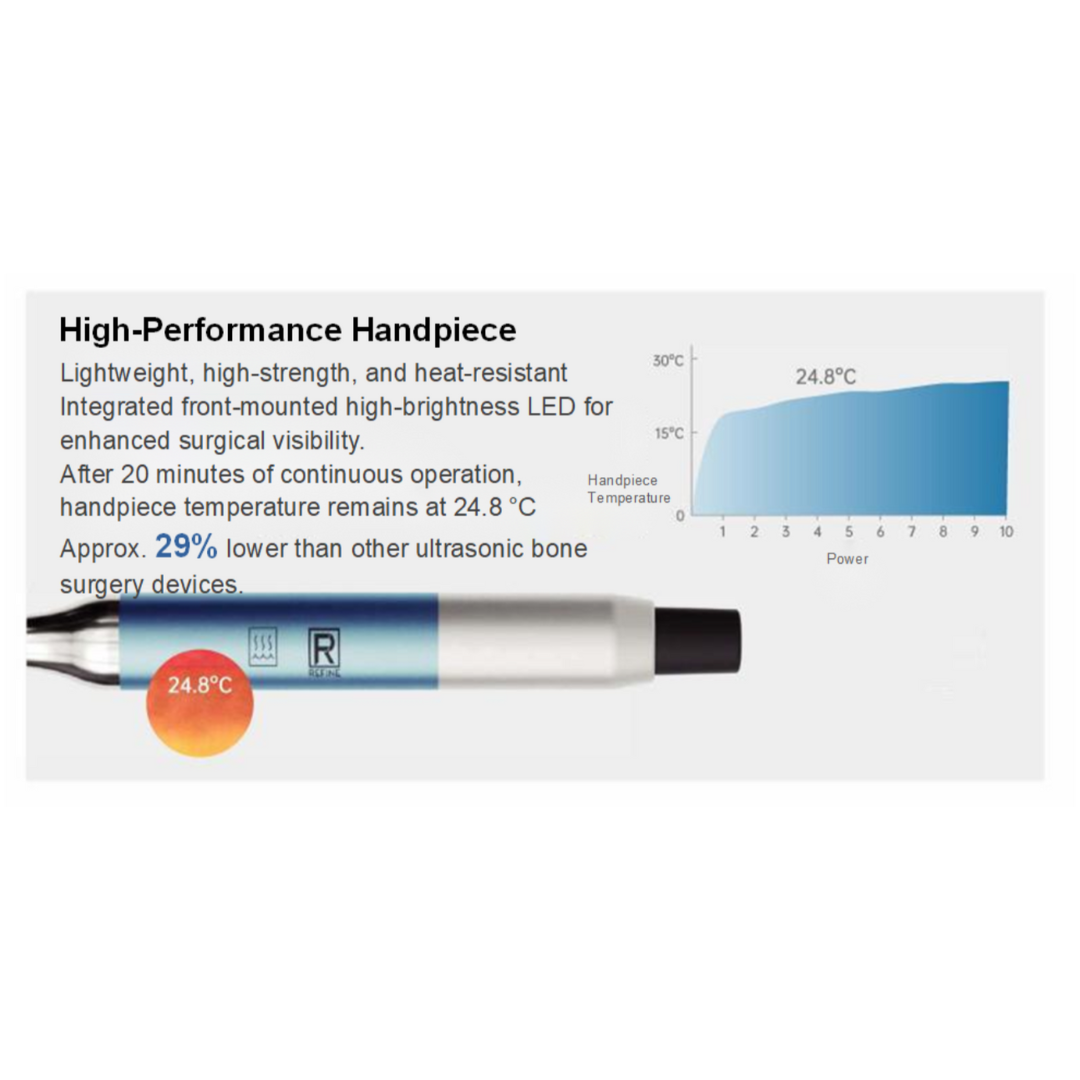

High performance handle: Lightweight, high strength, high temperature corrosion resistance. Front LED lighting, clearer surgical field. Continuous operation for 20 minutes, the handle temperature is only 24.8°C (29% lower than similar products).

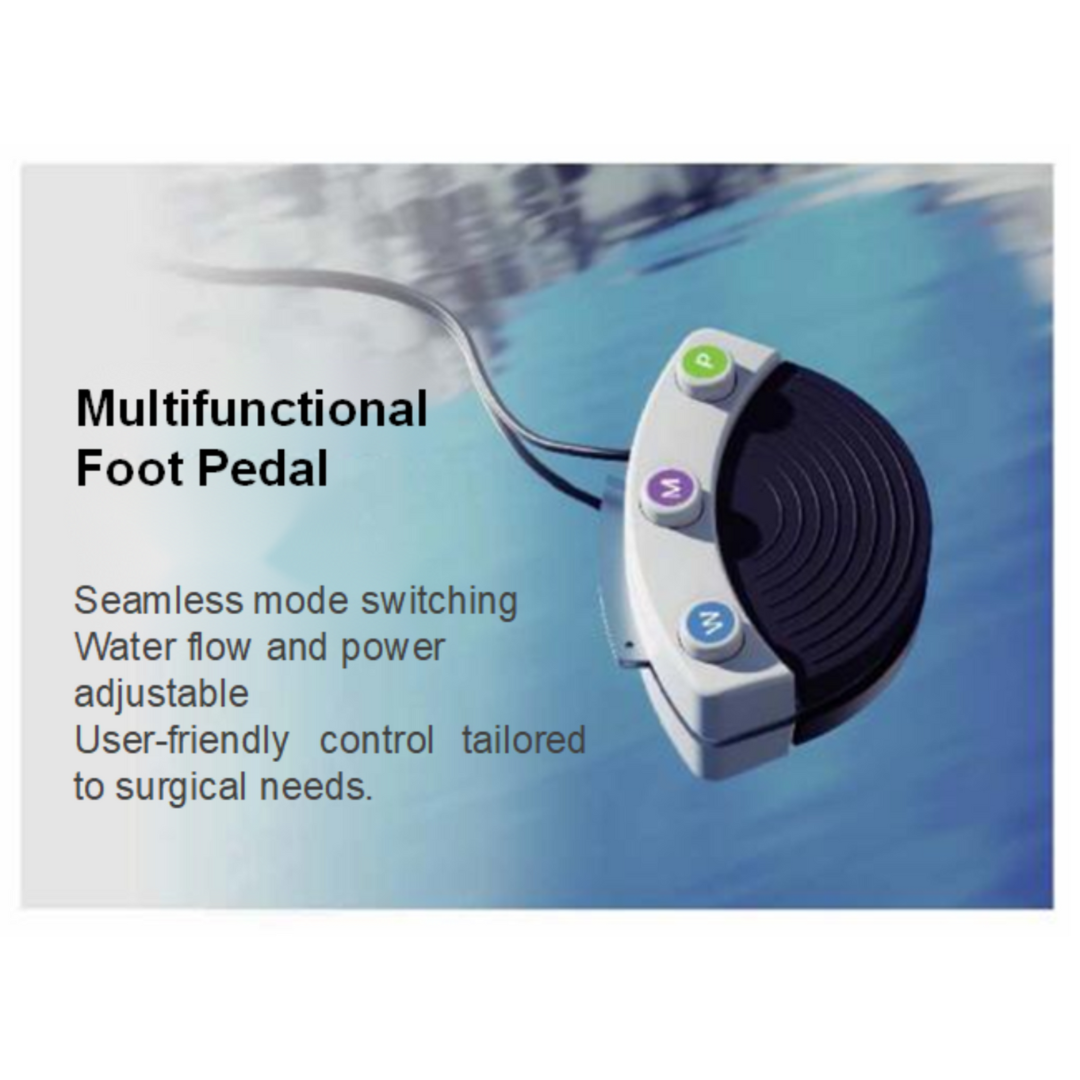

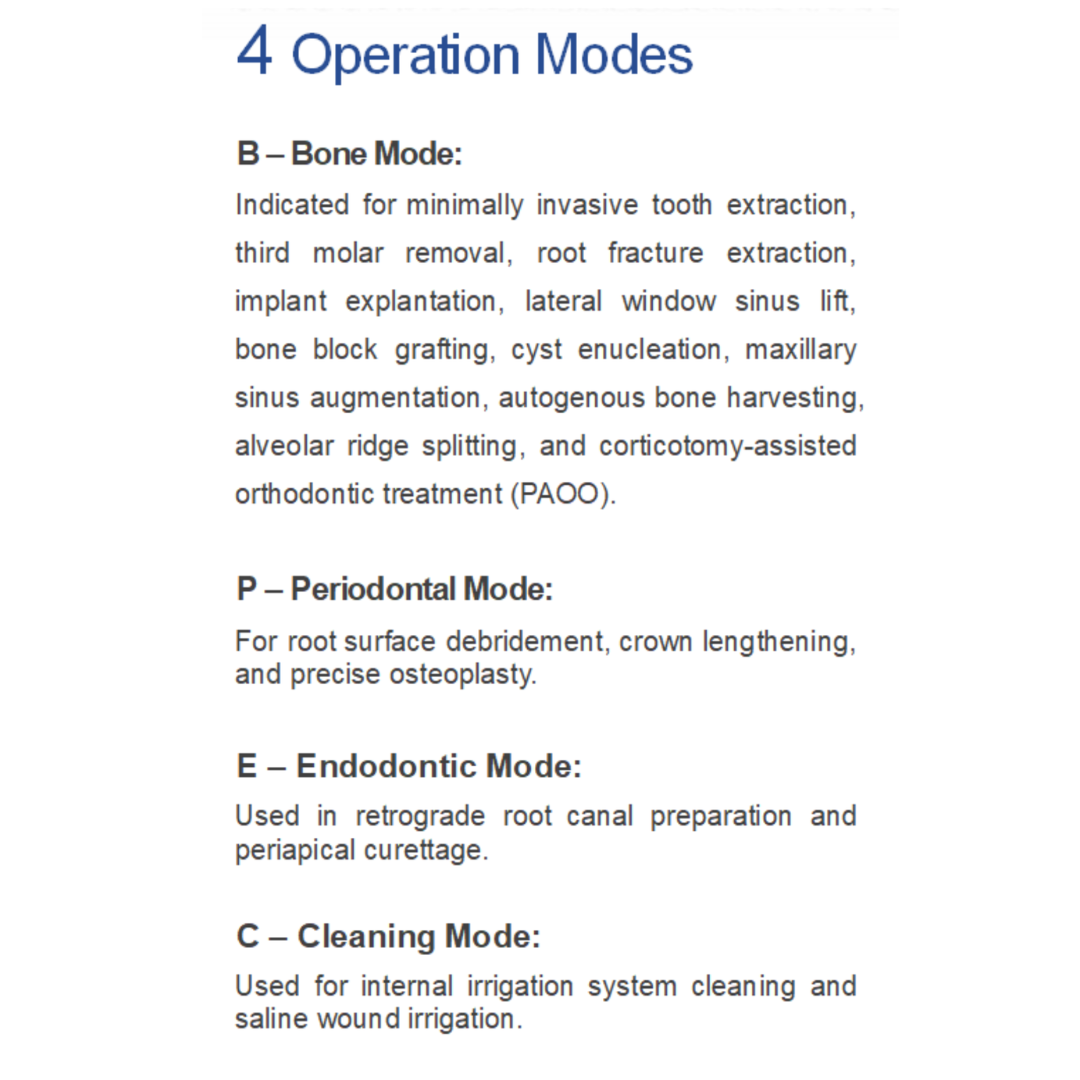

Multifunction Foot Control: Switch modes, power, and water volume hands-free for efficient workflow.

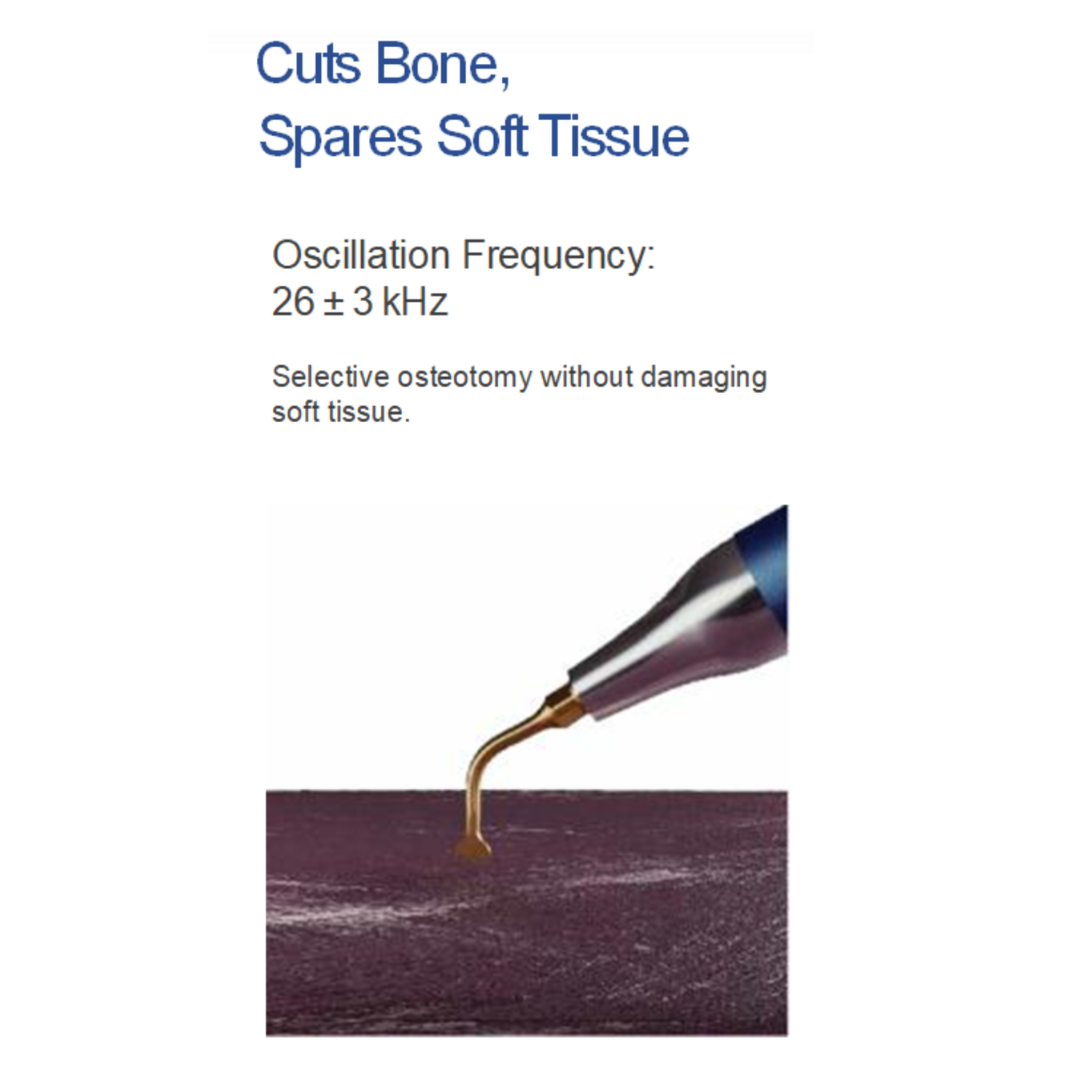

Selective Bone Cutting: Operates at 26 ± 3 kHz for precise hard-tissue cutting without soft-tissue injury.

Enhanced Surgical Safety: Stable vibration, no bone charring or soft-tissue tearing; minimal bleeding and pain.

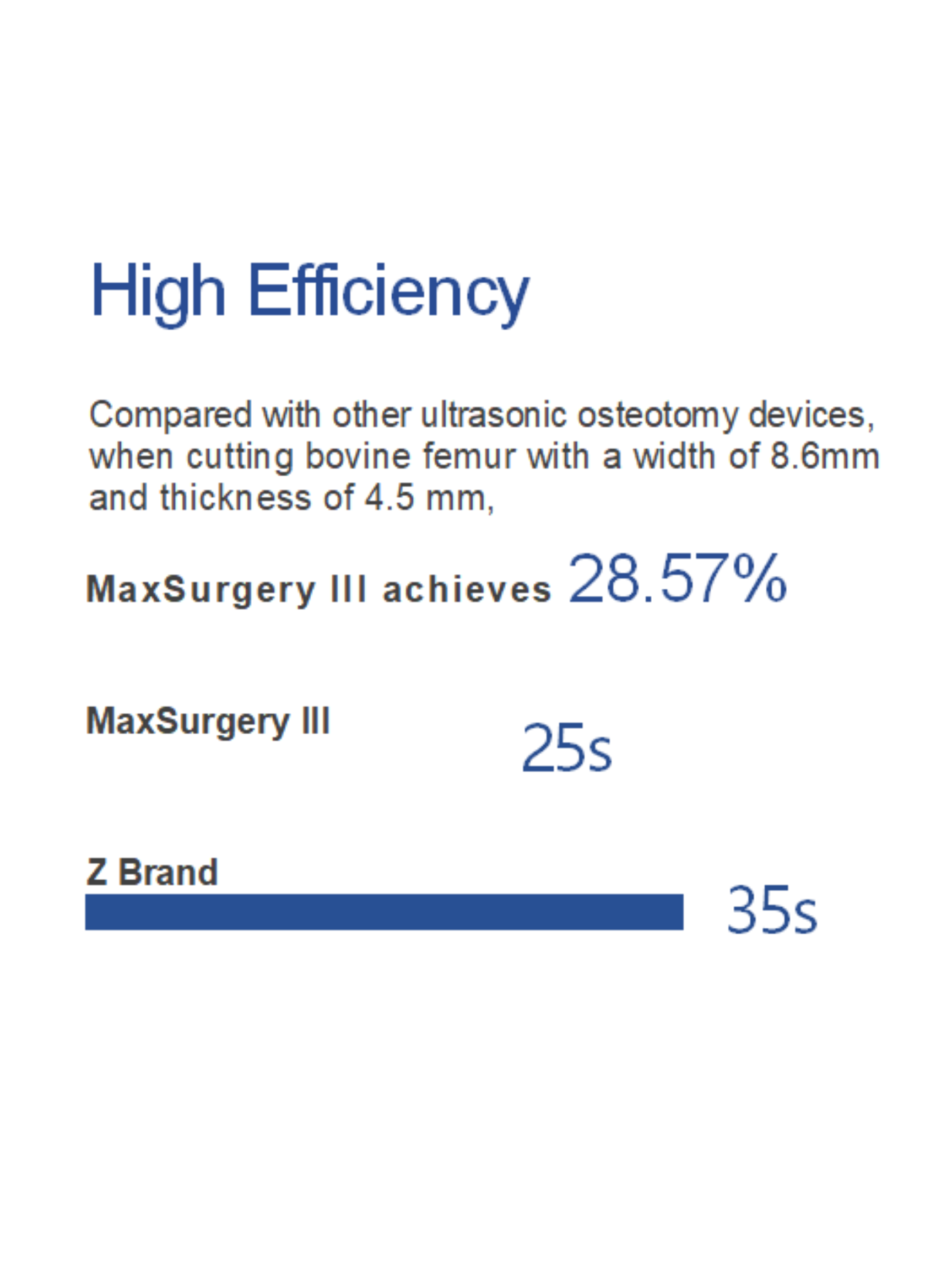

Superior Cutting Efficiency: 28.6% faster than conventional systems, cuts 8.6 × 4.5 mm bovine bone in 25 s.

Quiet & Comfortable Operation: Low noise reduces patient stress and hand fatigue.

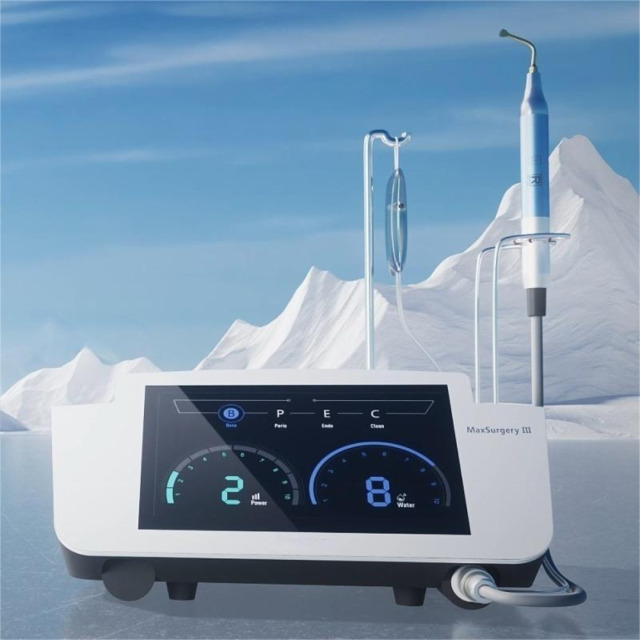

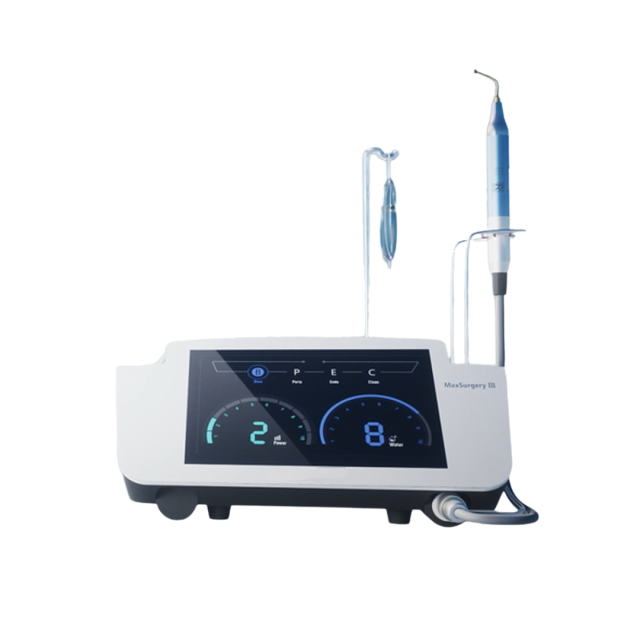

Comparison: Max Surgery III Traditional Machine

Accessory

Host 1 unit

power cord 1 pc

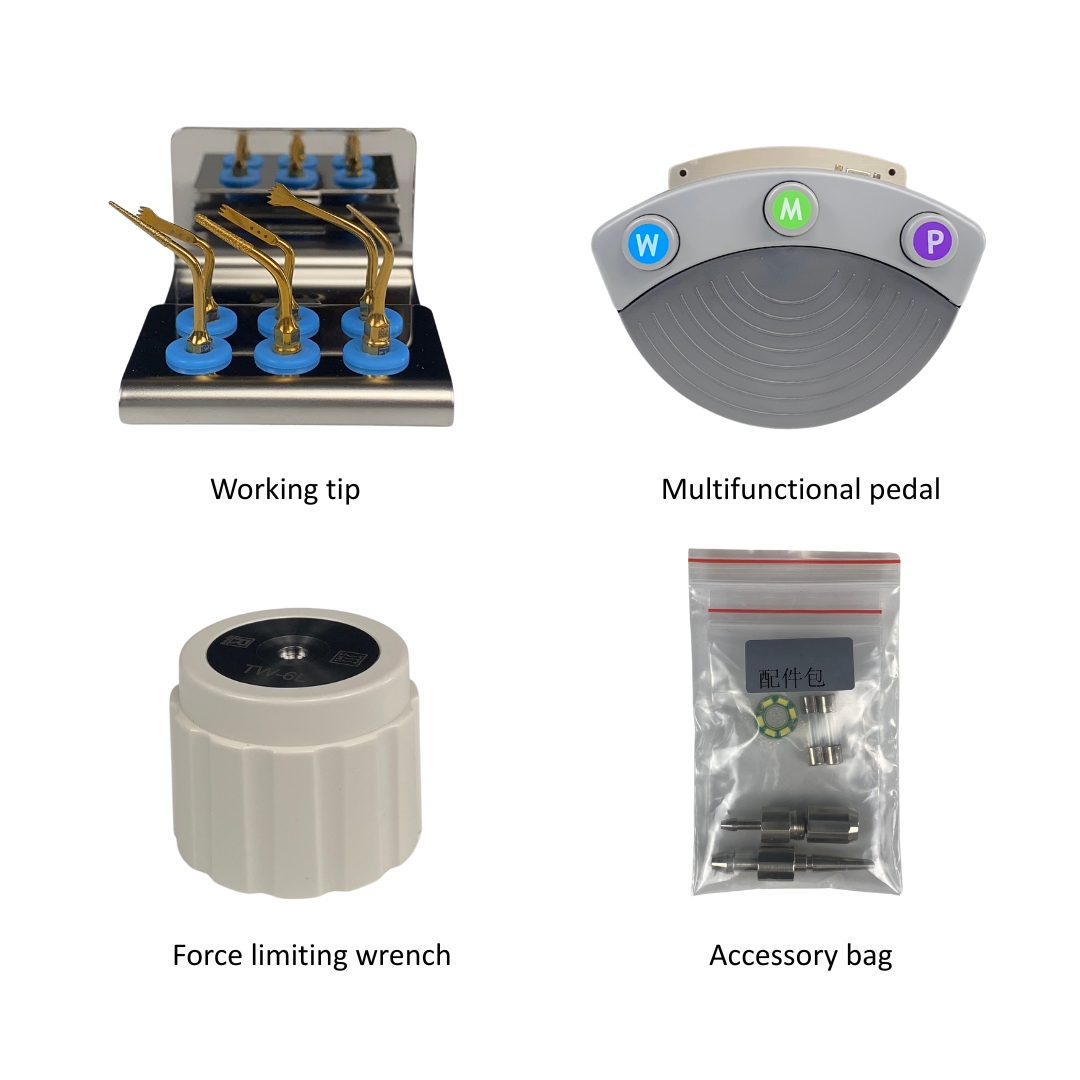

Multifunctional pedal 1pc

Pedal serial port cable 1pc

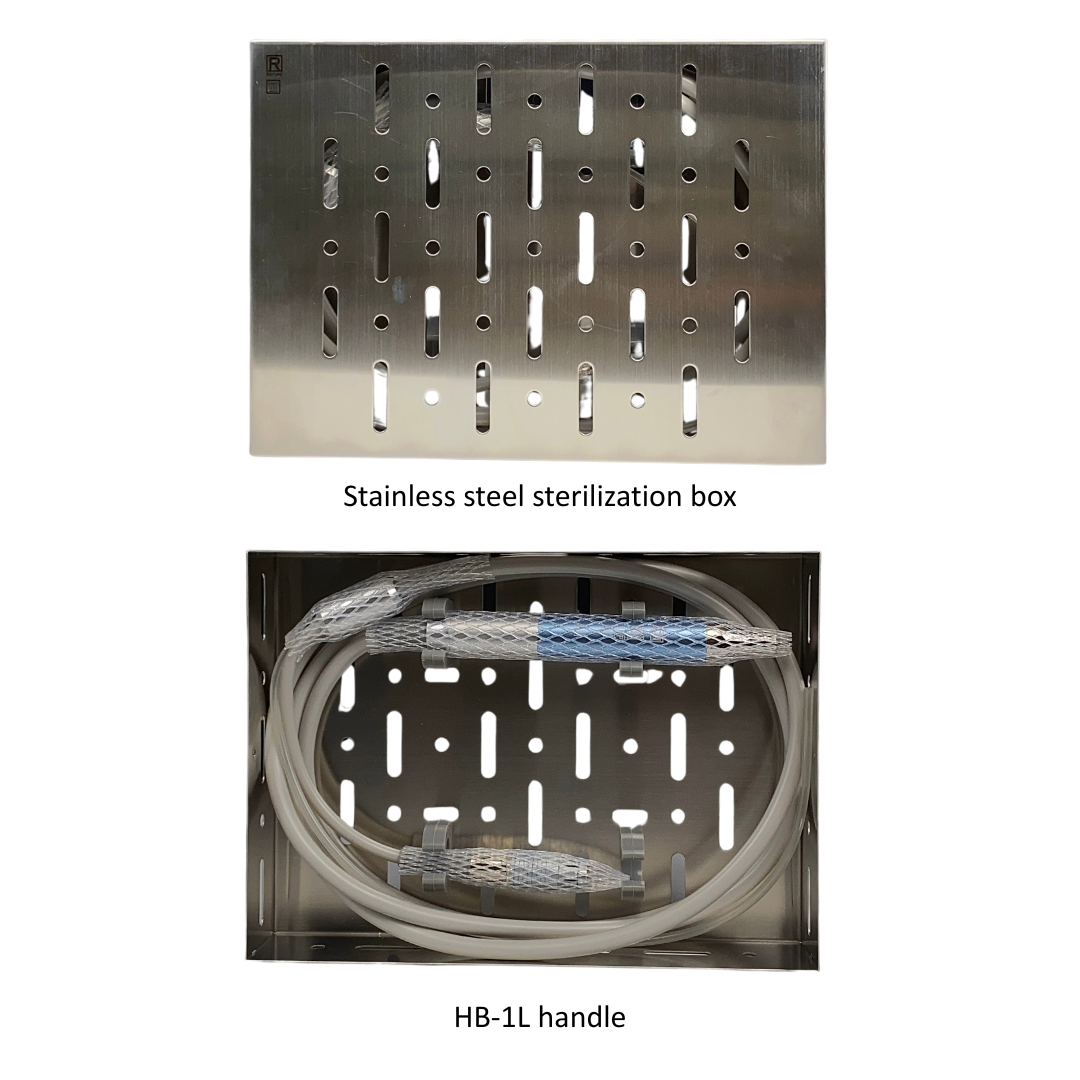

HB-1L handle 1pcs

Stainless steel sterilization box 1pcs

2# force limiting wrench (TW-6L) 2pcs

2# needle holder 2pcs

Infusion bag holder 1pcs

handle bracket 1pc

Silicone stent 2pcs

Silicone tube 4*6 (50cm) 1pcs

Pump tube connector 2pcs

Infusion bag connector pin 2pcs

Handle LED light 2pcs

working tip 6pcs（US1*1、US2*1、US4*1、US5*1、UL3*1、UC1*1）

Manual 1 pc
