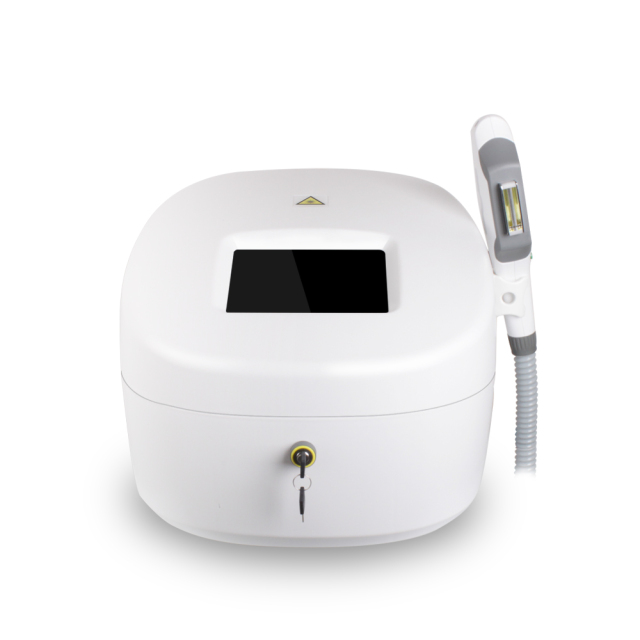

E-Light Rf Machines For Skin Rejuvenation, Pigmentation, Acne, Red Vein, Rosacea, Birthmarks


E-light Principle

E-light combines three advanced technologies: bipolar radio frequency + ipl +skin contact cooling. When the three are united in one treatment, wonderful treatment experience and result can be expected. The energy of radio frequency can reach the middle and deep layer of the skin and heat up tissue, thus, lower energy is applied during the ipl treatment. Uncomfortable feeling during the ipl treatment will be decreased significantly and better result can be expected. In addition, cooling system involved in e-light can also ease the uncomfortable feeling.
The absorbing of the energy of radio frequency is not concerned with melanin. So, the e-light treatment can get good result on the soft or thin hair so as to decrease the risk caused by traditional ipl treatment.

e-light Application

Skin rejuvenation using E-light is rapidly becoming recognized as a fast, safe and highly effective method of reducing unwanted pigmentation and improving the tone of the skin without suffering painful side effects. This treatment is highly effective and the client can return to normal day to day activities immediately following the treatment:


Skin Tightening&Rejuvenation
By using the E-light system, unwanted hair can be removed from all parts of the body. E-light combines the already proven IPL (intense pulse light) with RF (radio frequency) making it so effective that it can treat dark and light hair. This includes blonde, white, red & ginger hair.

Permanent Hair Reduction

E-light is also a fast, safe and highly effective method of reducing unwanted red veins caused by swollen or damaged blood vessels. The E-light delivers pulses of light energy that cause the blood within the vein to coagulate eventually destroying the vessel which is later reabsorbed by your body. The blood flow will then be redirected to veins deeper below your skins surface where it should be.

Red Vein Treatment

RF Principle

With recent developments in cryogenics (the use of extremely cold substances) and information technology, non-ablative rf energy is the newest addition to the treatment options available for the ageing face. With the introduction of cryogenics it is possible to deliver rf energy to the deep dermis and sub-dermal layers of the skin, whilst protecting the epidermis. Heating in this area, without damaging the outer layers of skin, causes microscopic changes to the tissues and collagen contraction, with subsequent collagen remodelling over the months that pass.

RF Application

Wrinkle removal
face: thin line, forehead wrinkle, cheek line, wrinkle around lip, neck line, double chin, skin-smoothing.
Eye: eyelid-sagging, crows- feet, wrinkles under eye and pouch.
chest: enhance chest shape, breast-beautifying and chest-strengthening
body: tighten the loose-skin of arm, waist, abdomen, and leg and pregnancy line.


  1. Perfectly combined RF / IPL / E-light
    Suits for dark colored skin and soft light hair.
  2. Best Chinese xenon lamp used, guarantee 200,000 shots
  3. Sapphire crystal handpieceensure high energy output and -4℃ contact cooling
  4. Filter insert handpiecedesign, multifunctional
  5. Super cooling systemensure long time working and better treatment experience
  6. Handpiece connector design, easy replacement
  7. Humanized control system easy to use:
  • 7 languagesoption
  • Automatic modesetting by skin color, hair color, hair density
  • Water flow&water temperature auto checking and warning,get rid of checking water level
  1. Spot size option: 15mm*50mm, 8mm*40mm
  2. Compact design, high quality connector used
  3. Factory direct sale, OEM free.


 Treatment head

1pc E-light probe, 1pc RF probe

Filter Wavelength



RF tips

3pc bipolar RF (big, medium, small)

Spot size

12mm*30mm or 15mm*50mm

IPL light Energy


Pulse Interval


Pulse width


Pulse delay


Pulse Number


RF Energy

1-50 J/cm2

RF Frequency

5Mhz (bi-polar)

RF Adjust Range

500-2500 ms

Cooling system


Operation Interface

     Multilingual interface menu



Automatic mode setting by chose correct skin type, hair thickness and pigmentation.




Treatment area shows on display


Five records for special setting…


Cooling state adjustable,

Water flow and water temperature auto-checking




Filter plug in design malfunction E-light handpiece





RF handpiece suit for different body area


Painless, Scarless, Non-invasive, No downtime
