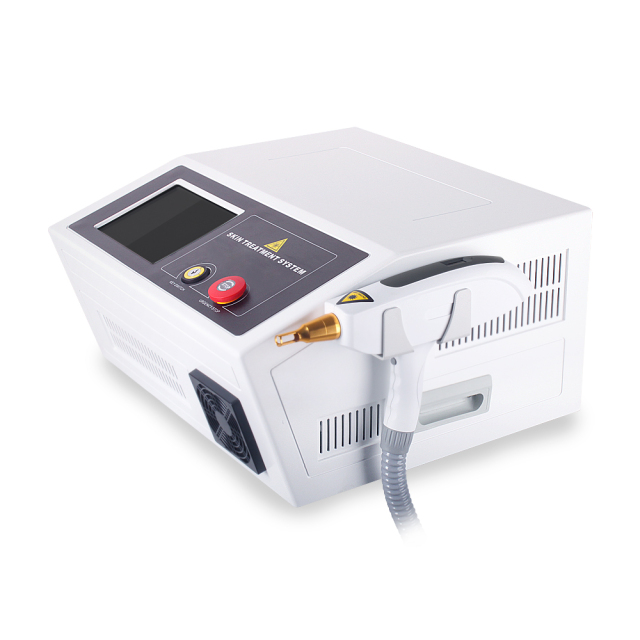

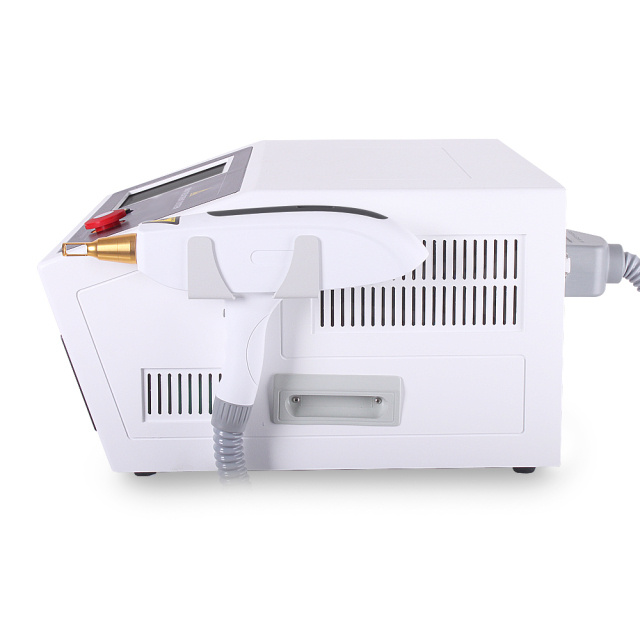

QL-40 use Q-switch nd yag laser technology. Laser can be absorbed by the blue and black melanin. The melanin will split into an even more tiny particles. They are so small that they can be metabolized by the lymphatic system and be egested out of the body. Thus the tattoo or other pigmentations will be removed without any injury to normal tissue. The treatment is safe and convenient without downtime or side effects.
The system adopt 600W laser power supply, energy reach to 1200mj. Special designed 8’ true color touch screen control panel, easy to use. Automatic checking water temperature and water flow, assure the safety use of machine. With 3 laser tips can do various treatments of tattoo and pigmented lesions removal, laser toning and so on.
SPECS
Laser type |
q-switched nd yag laser |
Wavelength |
1064nm, 532nm, carbon assisted tips |
Fluence |
100-1200mj |
Frequency |
1-6Hz |
Pulse width |
8ns |
Spot size |
1-3mm |
Aiming laser |
Red diode 650nm, on/off |
Laser power |
500W |
Cooling system |
automatic water detector cooling+air cooling |
DETAILS
Functions
Features
Accessory list
1 x Main Machine
1 x Laser probe
3 x Laser tips(532/1064/1320nm)
1 x Doctor glasses
1 x Goggles
1 x Power Cord
2 x Keys
1 x Funnel with connector
1 x Drainage connector
2 x Fuse
1 x User Manual
